ASM3142 Firmware Upgrade Operation Steps for Redcomets PCIe Cards

by aimee song

Upgrade Operation Steps

If any Inateck KU5211, KU8211, KU5211A, KU5211E, KU5211ALP PCIe card is not compatible with MSI X570, please follow the steps below to upgrade the firmware. You can download the upgrade tool here, and the upgrade firmware here

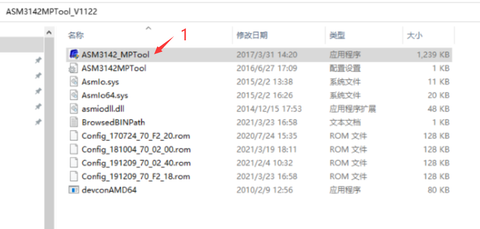

1. Double-click to launch the upgrade tool.

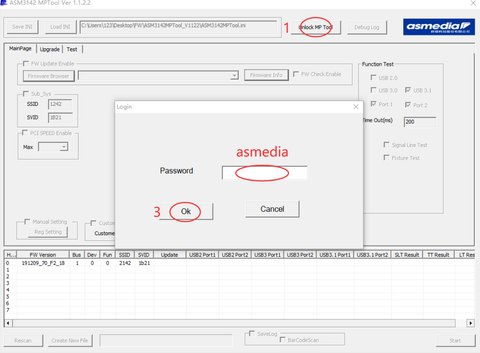

2. Enter unlocking password:

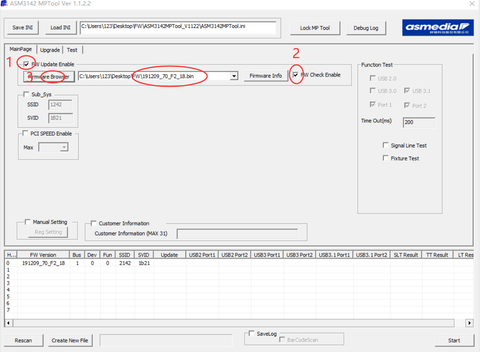

3. Select the firmware file: bin

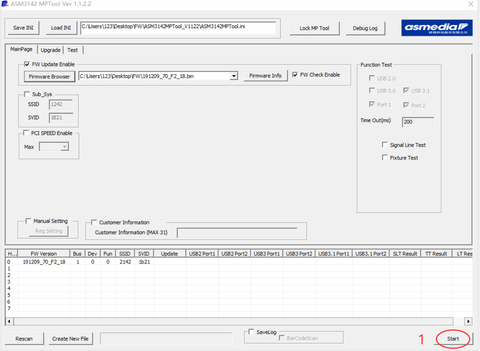

4. Start burning the firmware, and wait for 20s.

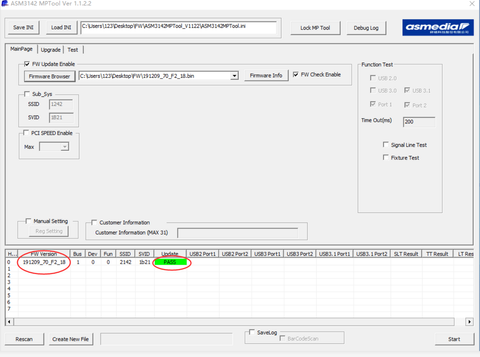

5. After burning the firmware successfully, check if the version number is correct and restart the computer.
